Study of the sewage network project in the village of Nawa (Hama Governorate)

horizontal projection

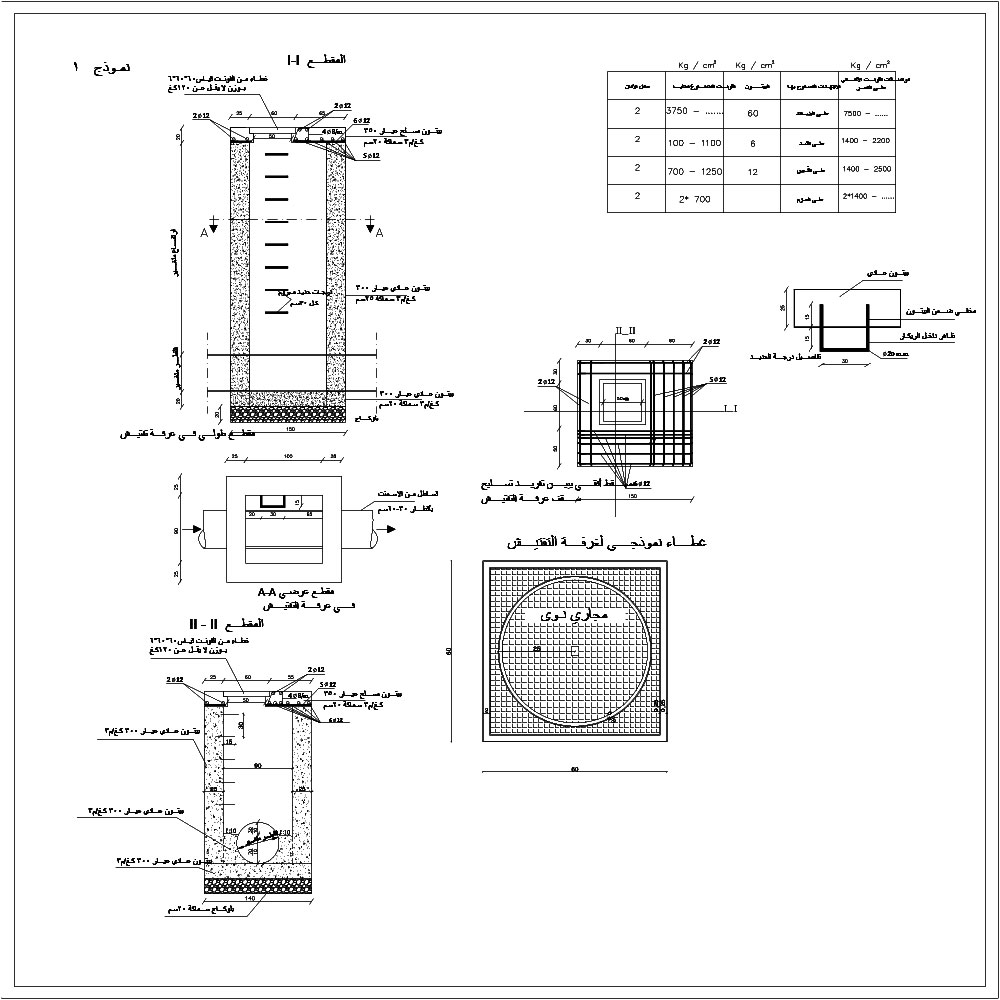

Regular Model 1

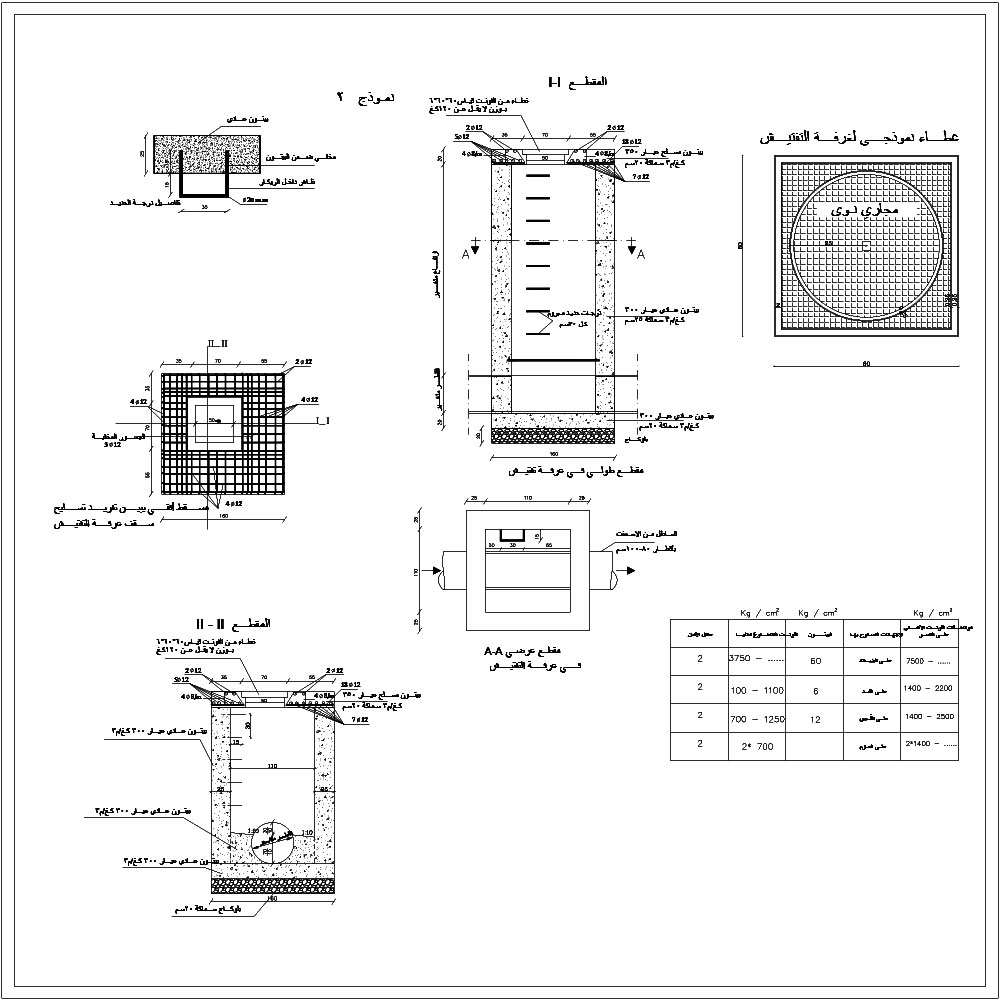

Regular Model 2

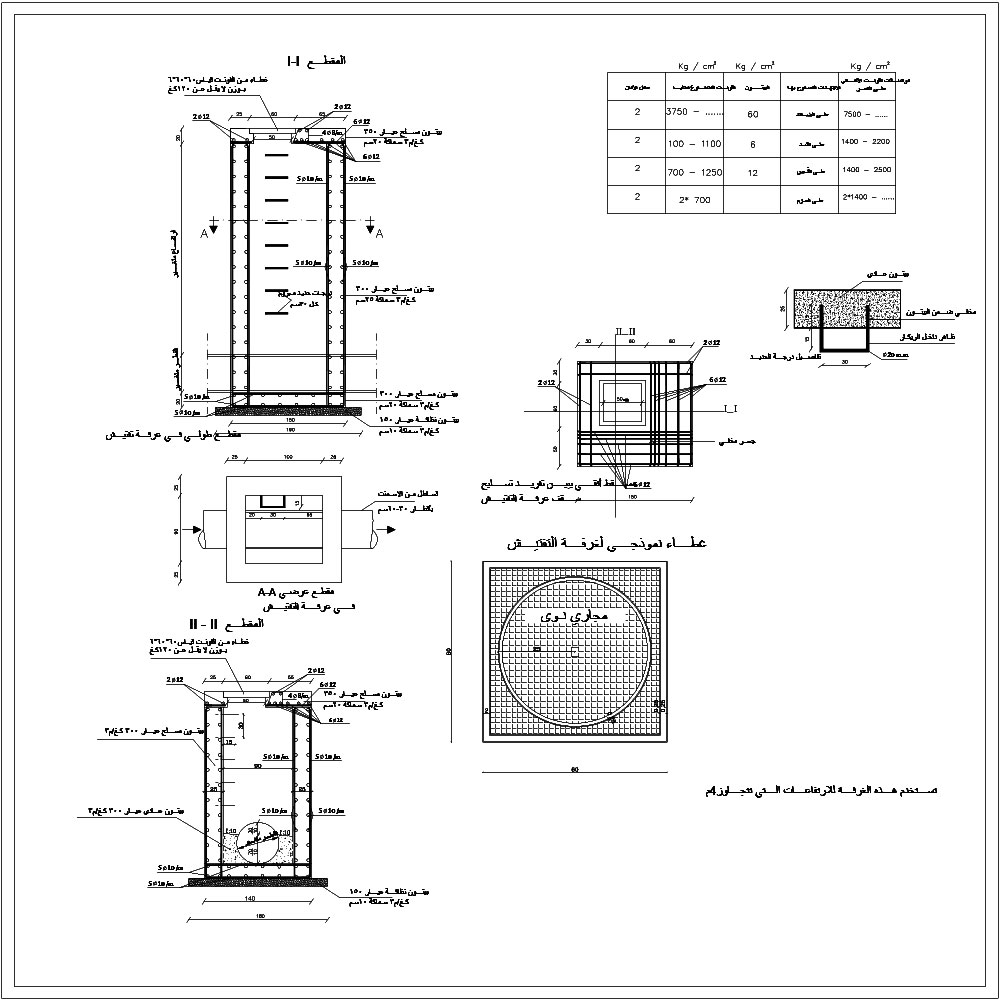

Armed model

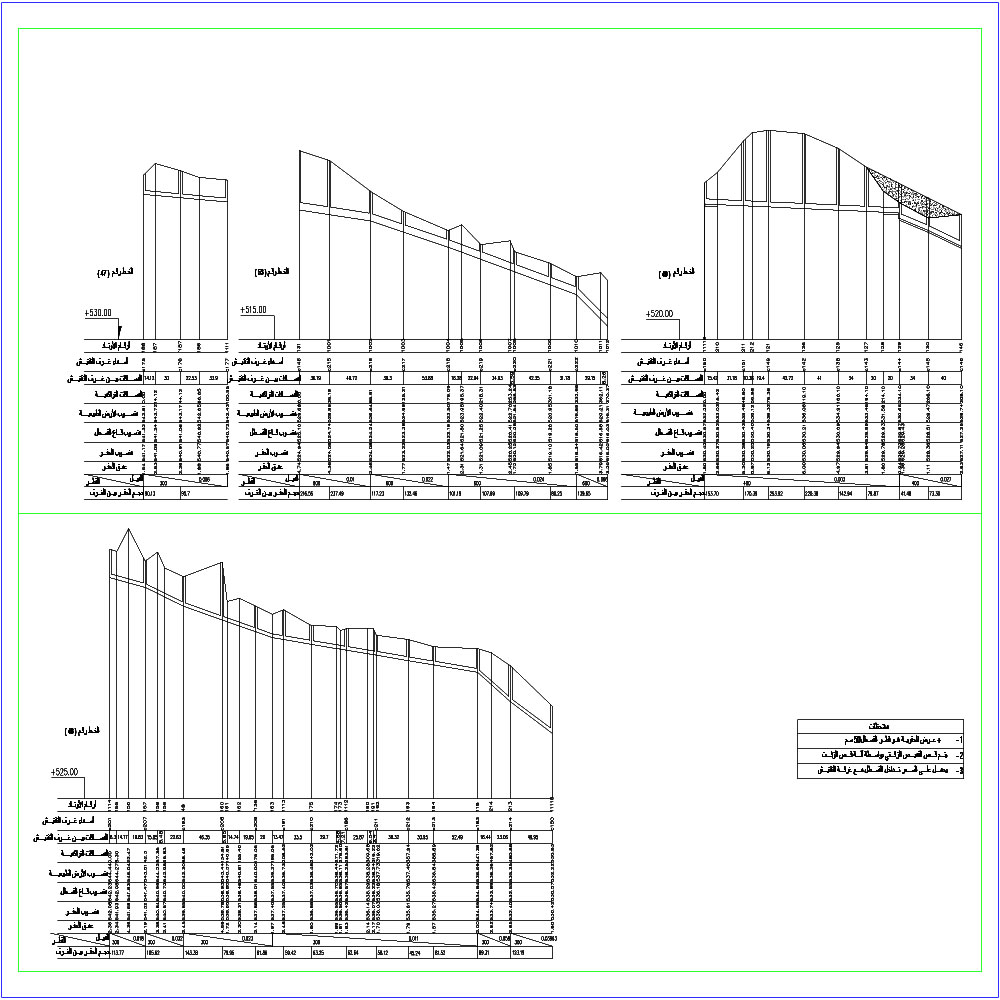

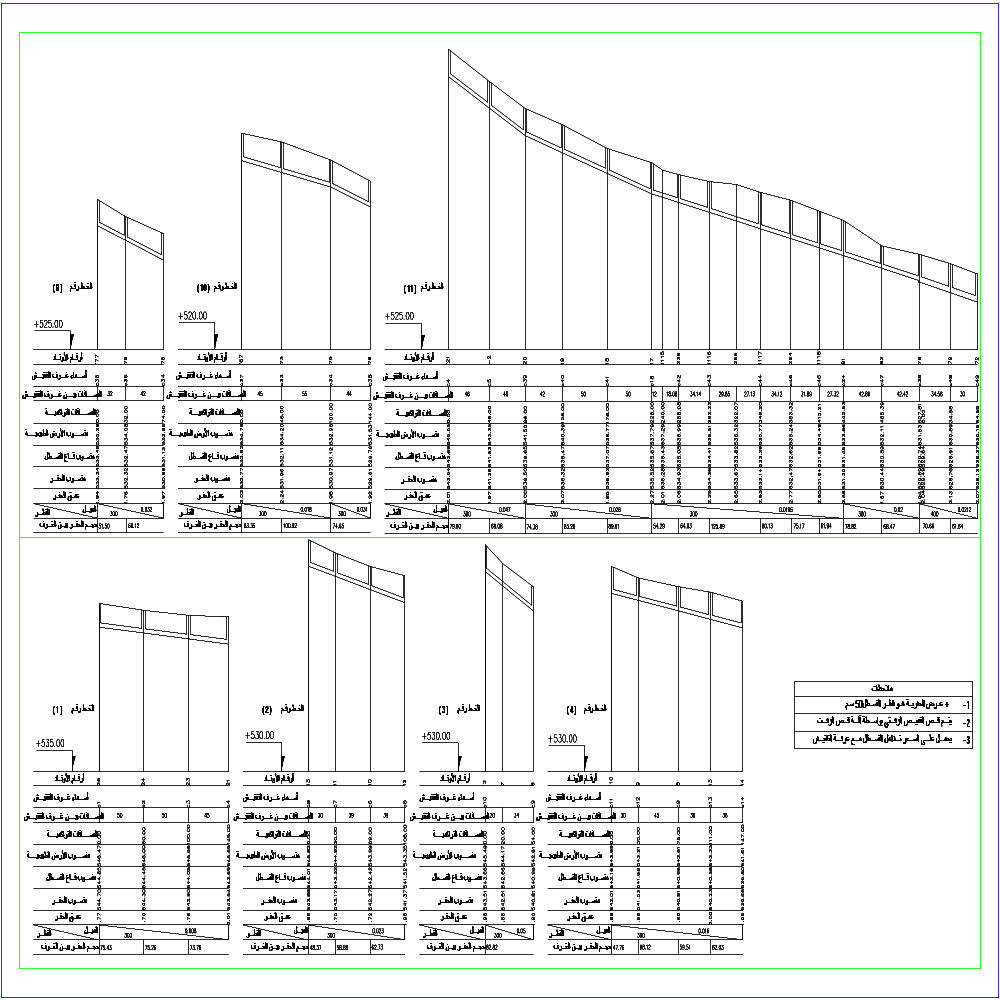

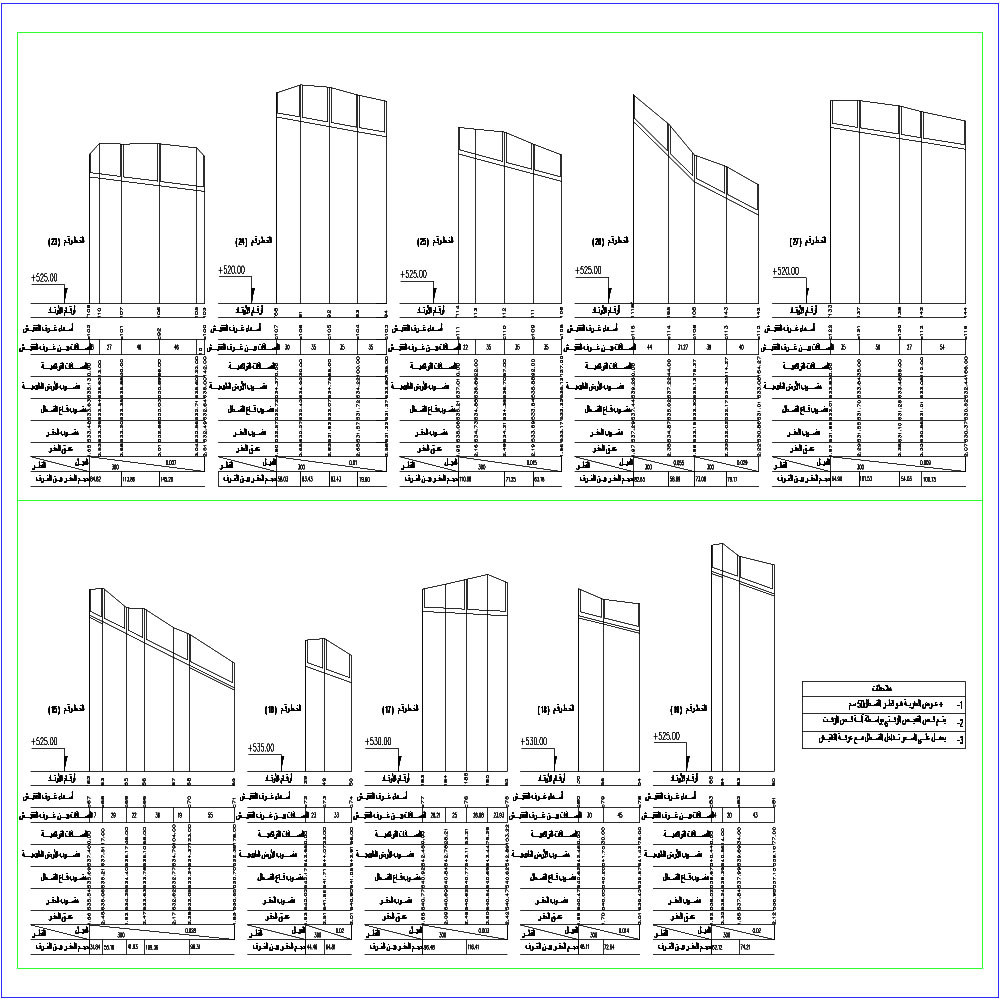

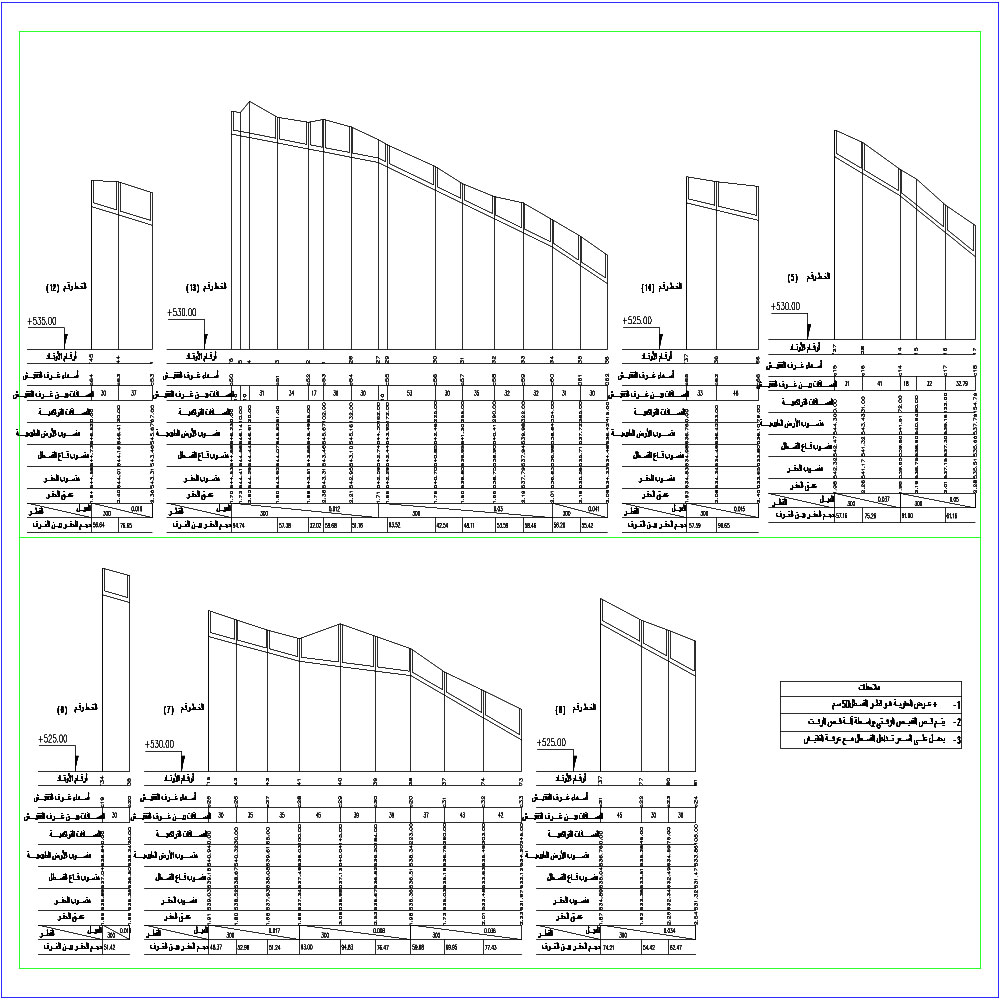

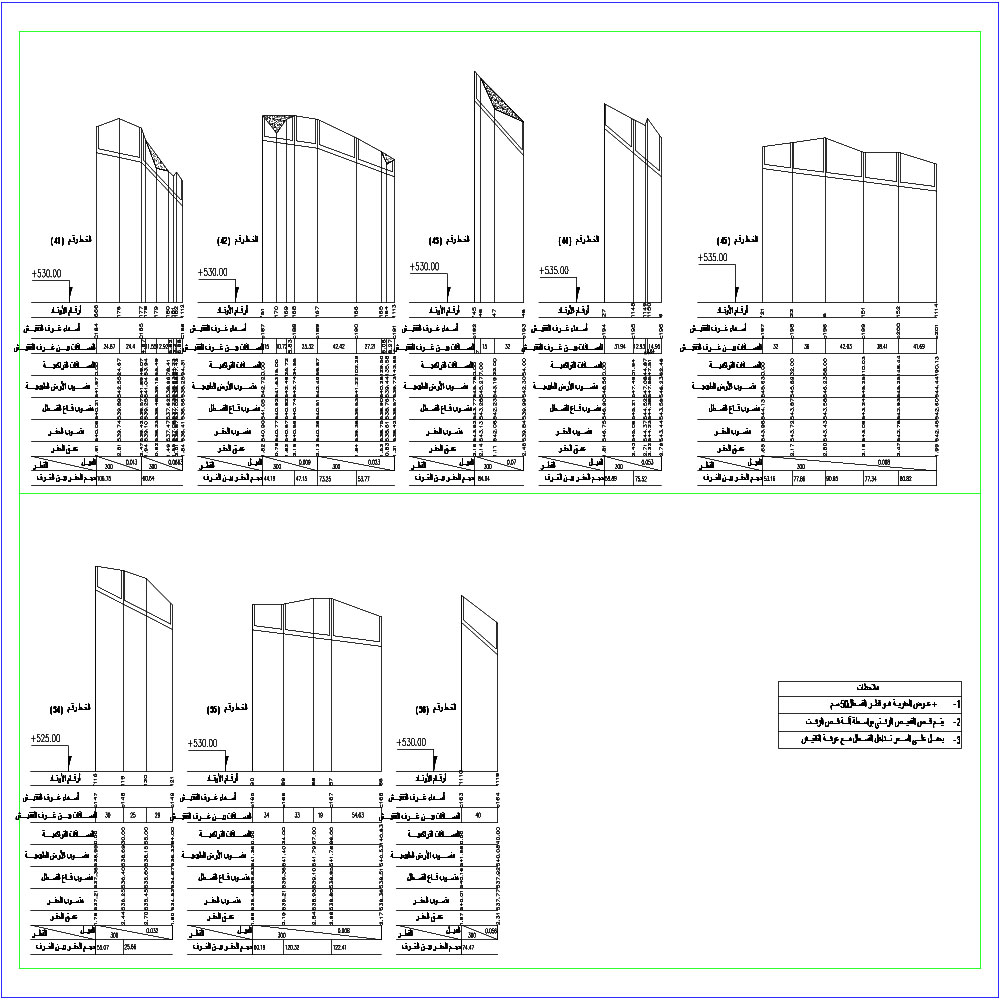

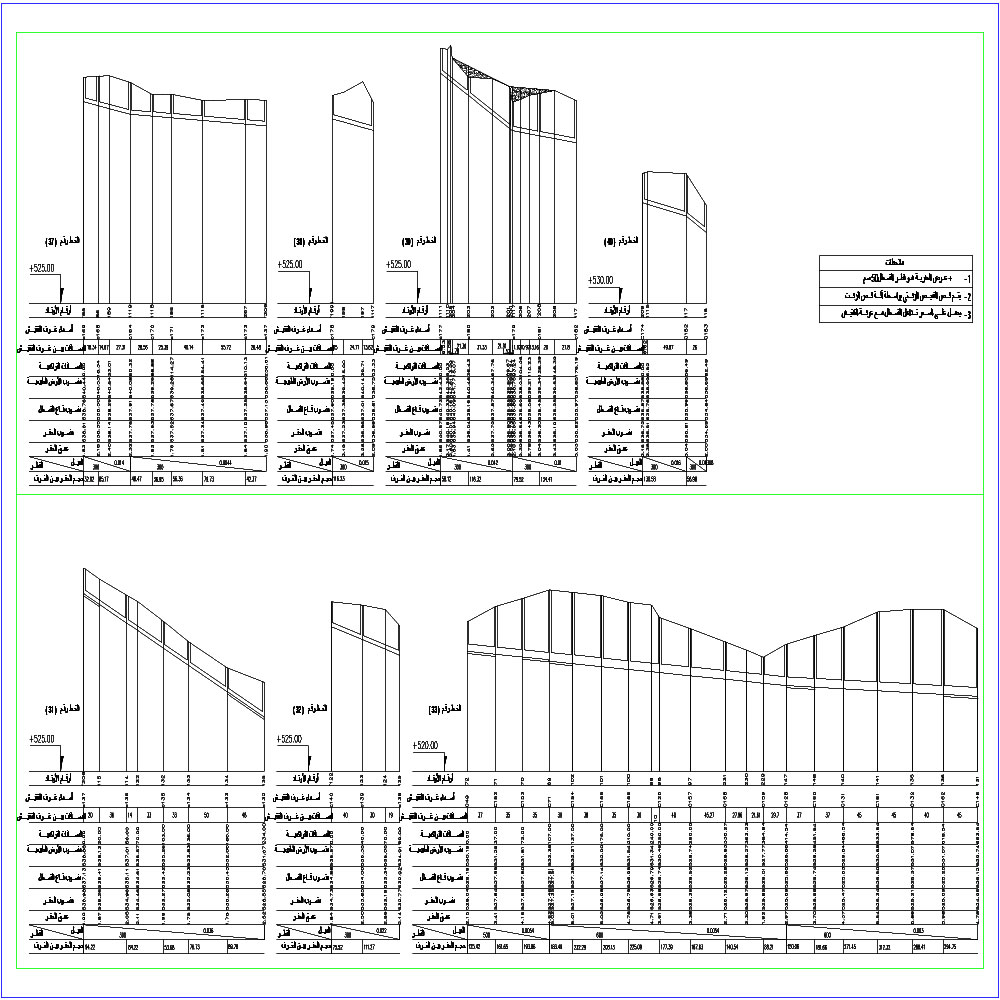

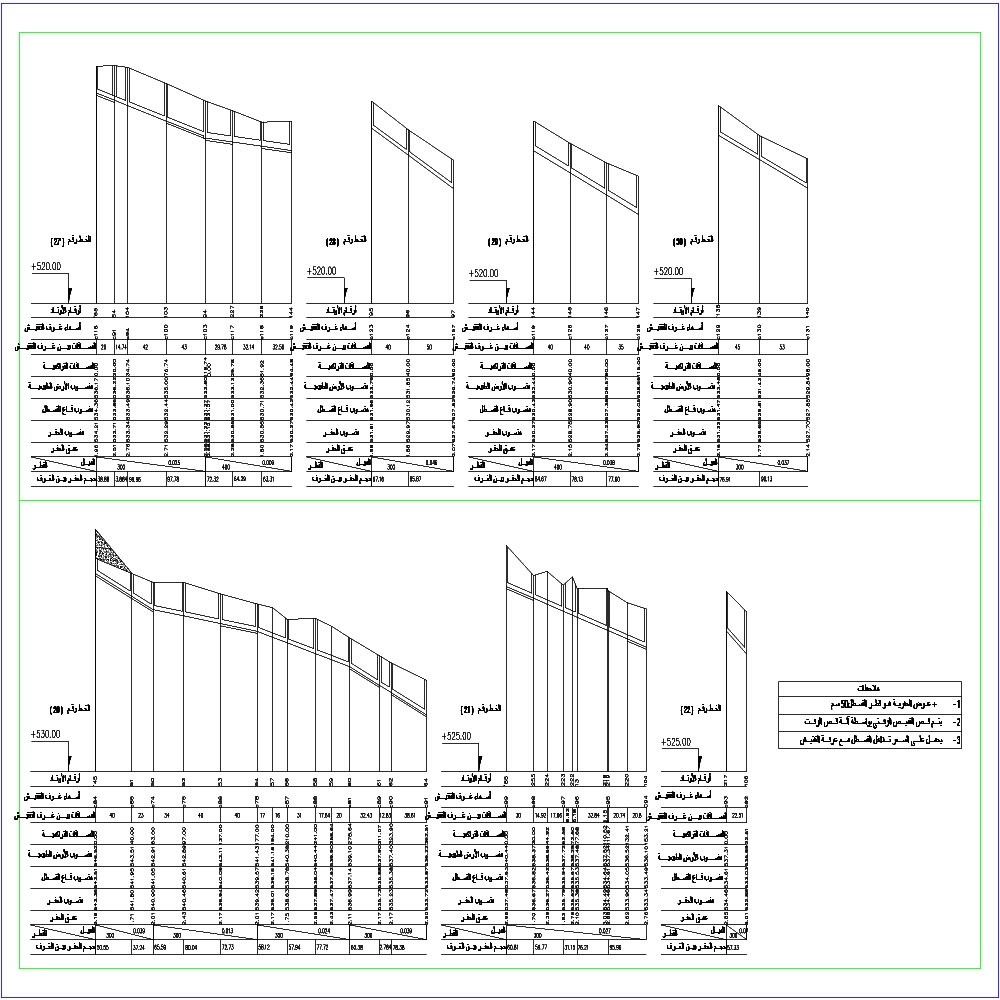

Sections 1

Sections 2

Sections 3

Sections 4

Sections 5

Sections 6

Sections 7

Project Description

Scope Of Services



Project: Engineering Study and Design of the Sewage Network in Nawa Village (Hama). Scope of Work: The project involves the preparation of comprehensive technical and engineering studies for the sewage system in Nawa village. The scope includes conducting precise topographic surveys of main and secondary routes and designing the network based on natural ground slopes to ensure efficient gravity flow. The study also features the calculation of pipe diameters, elevation levels, and the positioning of manholes in alignment with the village's master plan and the technical standards of the Ministry of Local Administration and Environment.

Contract date and num

رقم /2/ لعام 2003 .' | ' .0001-01-01

Client

Sheikh Ali Kassoun Municipal Council
